PART 1 — The 7-Sensor Design (Overview)

Built to keep you on the sticks — not on a controller

If you’ve played Taiko no Tatsujin at home, you’ve probably felt this moment:

You finish a song.
You’re still in the groove.
And suddenly—you need to put your sticks down and reach for a controller.

That small interruption breaks the rhythm more than people expect. The TDC17’s 7-sensor design was created to remove that friction.

From 4 sensors to 7 — what changed?

Traditional taiko controllers use 4 sensors (Left/Right Don and Left/Right Ka). That’s enough for playing notes—but not enough for staying in rhythm between songs.

The TDC17 keeps all four playing zones, and adds three extra sensors along the bottom edge. These sensors are not for new notes. They exist to make interaction smoother.

What the extra sensors unlock

With the extra sensors, the drum becomes more than an instrument. They help you handle common actions like:

  • browsing songs
  • confirming selections
  • pausing or starting gameplay

—all without picking up another controller.

The result:
You stay focused. You stay on the sticks. You stay in the game.

Why this feels more like a real arcade

In real arcades, you don’t switch devices just to manage menus. Everything happens at the drum. The TDC17 brings that idea home:

  • less reaching around
  • less setup clutter
  • fewer interruptions between songs

Especially during longer sessions, the difference becomes obvious.

You don’t need to memorize anything.
Start playing with what feels natural. When questions come up, use Part 2 as a reference.

PART 2 — 7-Sensor Mapping Guide (Reference)

This section explains how the TDC17’s 7 sensors are mapped when Arcade Mode is ON vs OFF, across different consoles (Switch / Xbox / PS4 / PC).

Use this like a reference card.
You don’t need to memorize it—just come back when something feels confusing.

Understanding Arcade Mode (before the diagrams)

Arcade Mode ON
Arcade-style flow. Designed to move forward smoothly.
No Cancel action (just like real arcades).
Arcade Mode OFF
Controller-style behavior. Confirm and Cancel are both available.
More flexibility for menus and settings.
Not sure which to use?
Start with Arcade Mode ON. Switch to OFF only if you need Cancel or deeper menu control.

Arcade Mode ON — Arcade-style flow

In this mode, the drum prioritizes smooth progression. The main drum surface handles browsing and confirmation, while the bottom sensors assist with directional and system actions. There is no Cancel operation.

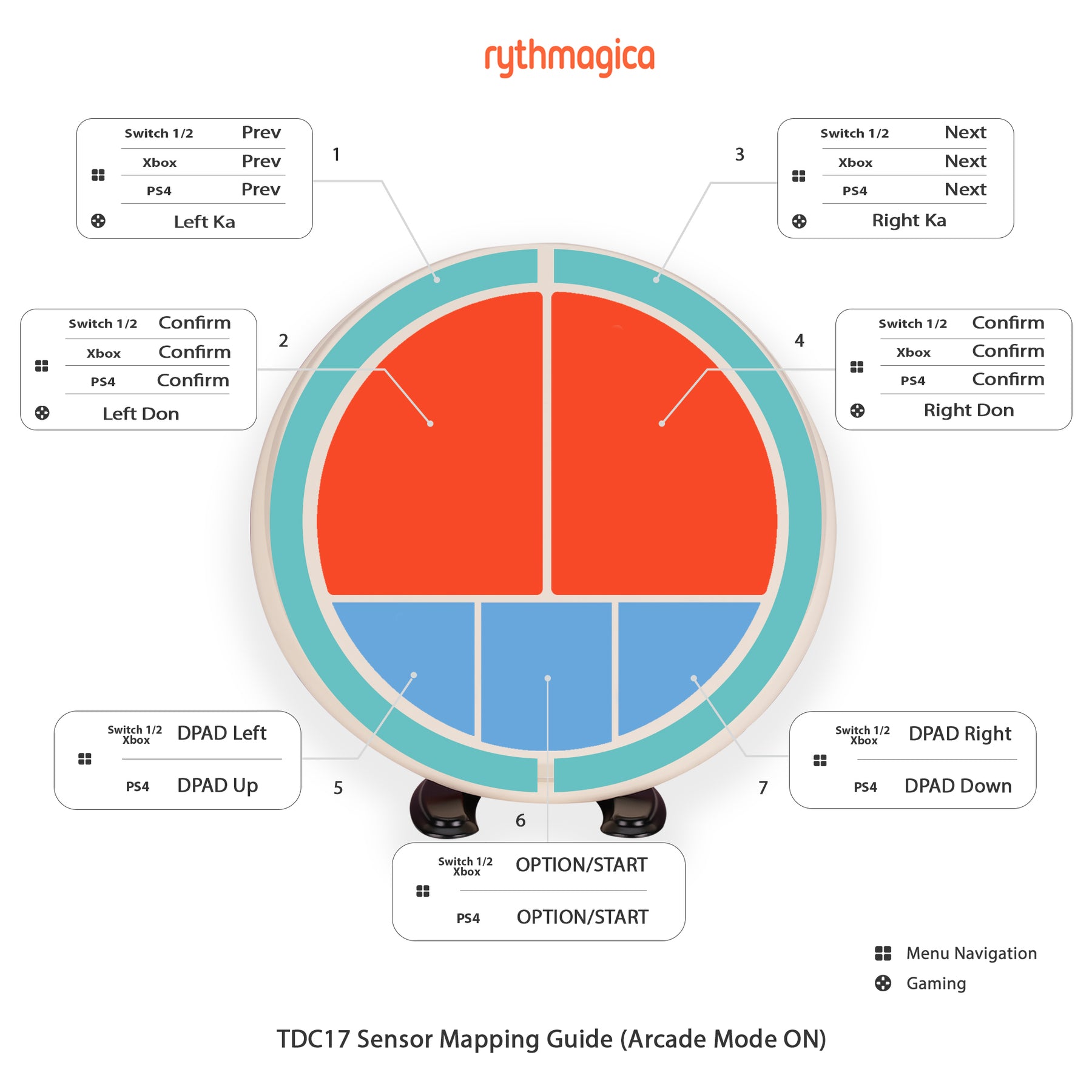

TDC17 7-sensor mapping diagram when Arcade Mode is ON
Arcade Mode ON mapping reference.

Arcade Mode OFF — Controller-style navigation

In this mode, the drum behaves more like a controller: Confirm and Cancel are clearly separated, navigation is more granular, and platform differences are more visible.

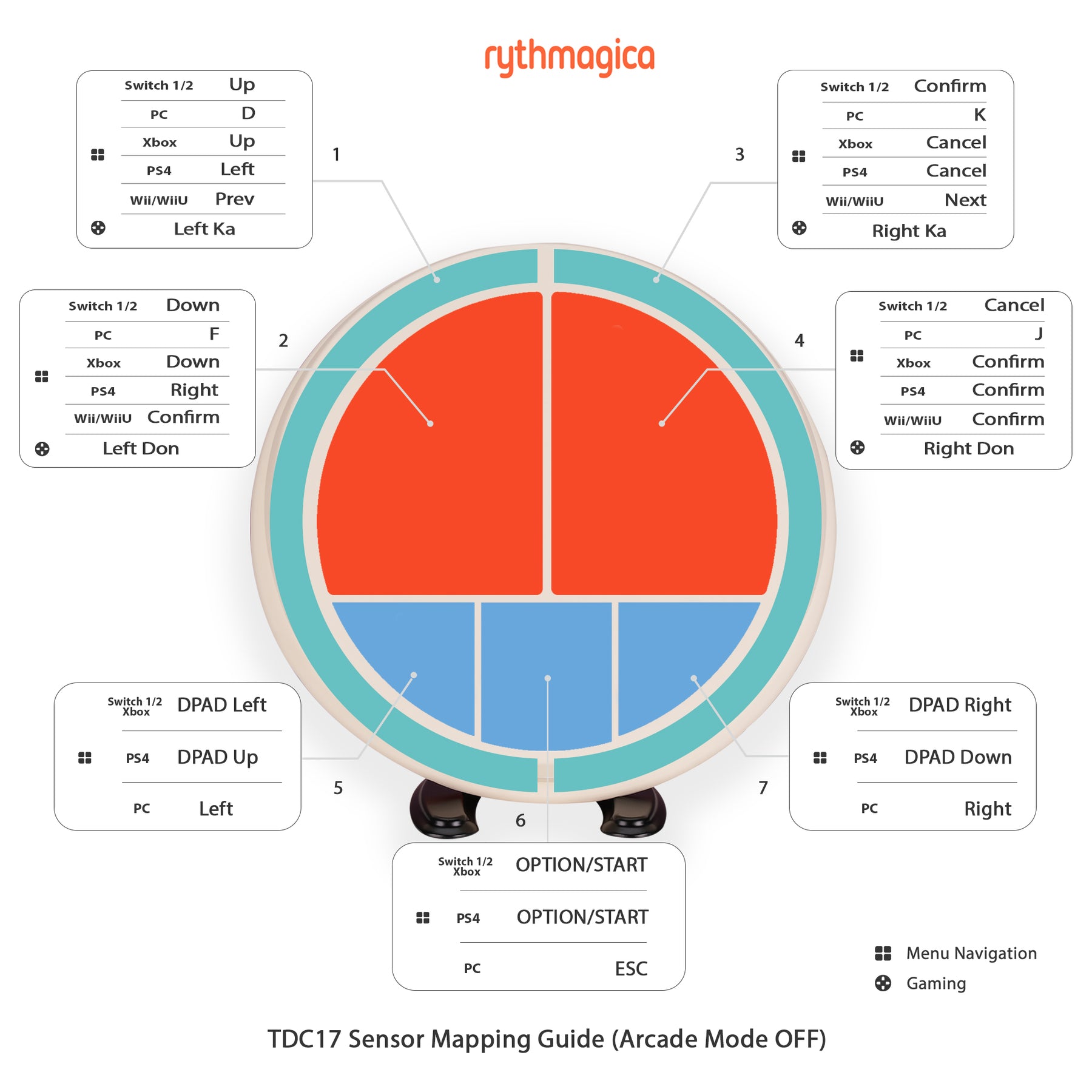

TDC17 7-sensor mapping diagram when Arcade Mode is OFF
Arcade Mode OFF mapping reference.

Notes for PC players

In PC Mode, the TDC17 maps to standard keyboard inputs (DFJK). Because those keys are designed for gameplay notes, the extra bottom sensors are not used for full menu navigation in PC Mode.

For Steam players using Taiko no Tatsujin: Rhythm Festival, you can switch to Switch Mode when you want full drum-based navigation.

Final reminder:
The mapping details exist to support you—not to overwhelm you. Most players start with Arcade Mode ON and check this section only when needed.

The 7-sensor design isn’t about complexity. It’s about keeping your hands where they belong—on the drum.
